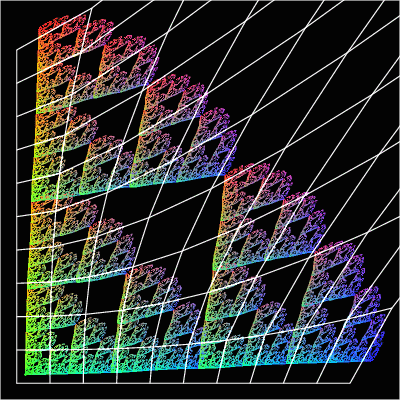

Figure 4: Fractal deformations of a Sierpinski gasket.
an example of continuous transition
(This example is not shown in the paper.)
The animation below is an example of continuous transition
from "fractal deformation" to "continuous deformation"
produced by the technique
using non-integers kb* and ke*
described in Section 5.4.
The value of ke* is 9.
The value of kb* changes
from 0 to 9 (= ke*) continuously,
and returns to 0 to repeat the animation.
During the transition below,
the displacement vector function Fv given to the gasket is unchanged
over time t
(this is indicated by the motionless white grid
representing the function Fv).
The localization of the scattering
of the displacement vectors by Fv changes continuously.
δv(s) = 0.75
